GEPRC NEW DarkStar22 O4 Pro HD Quadcopter/DarkStar22 WTFPV DIY Version PNP, ELRS 2.4G Receiver TAKER F405 20A ELRS2.4 2-4S AIO

GEPRC NEW DarkStar22 O4 Pro HD Quadcopter/DarkStar22 WTFPV DIY Version PNP, ELRS 2.4G Receiver TAKER F405 20A ELRS2.4 2-4S AIO

$888.99 USD
$0.00 USD $888.99 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS



Aerial Photography: Yes



Anti-wind Ability: /

Brand Name: NONE

Camera Mount Type: Fixed Camera Mount

Control Channels: 8 CHANNELS

Controller Battery: /

Controller Mode: MODE2

Drone Weight: 100g

Features: Other

Flight Time: 5~10

High-concerned chemical: None

Indoor/Outdoor Use: Indoor-Outdoor

Is Batteries Included: No

Is Electric: No Battery

Material: Plastic

Model Number: GEPRC DarkStar22

Operator Skill Level: Beginner,Intermediate,expert

Package Includes: Original Box

Recommend Age: 14+y

Remote Control: Yes

Remote Distance: 2000 meters

State of Assembly: Ready-to-Go

Video Capture Resolution: 4K UHD

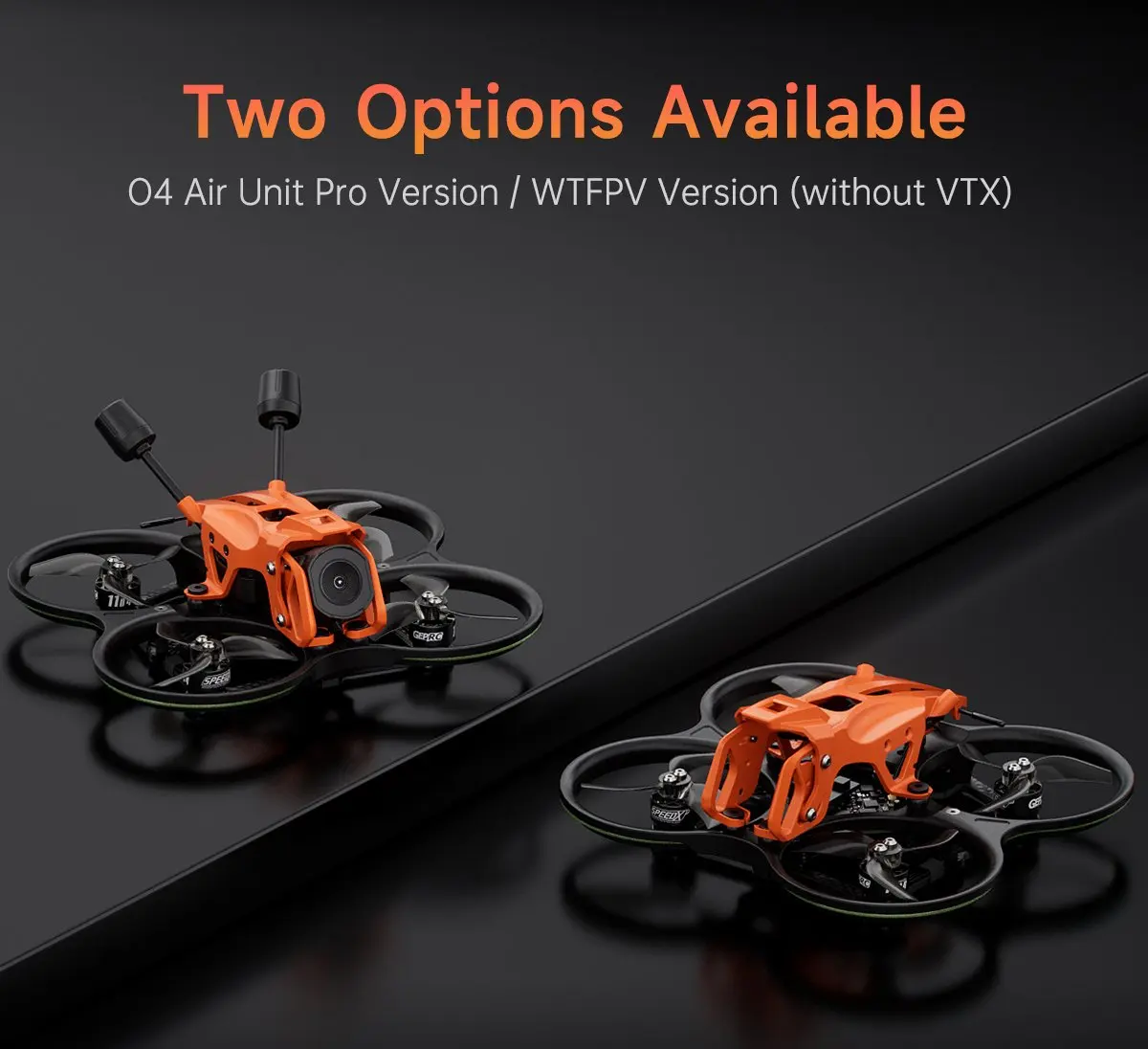

Note: Contents vary by selected WTFPV or O4 Pro specifications.
Note: The WTFPV version does not come with any VTX, Camera,Antenna!!!

Summary

The DarkStar22 combines high performance with portability, equipped with the D-J-I O4 Pro VTX system, delivering ultra-low latency, HD stable long-range transmission.

It features the latest TAKER F405 20A ELRS2.4 2-4S AIO flight controller with an integrated receiver, eliminating the need for an additional RX and ensuring compatibility with all mainstream ELRS protocol radios. The innovative five-point floating damping system provides a stable working environment for the O4 Pro gyro, enabling smooth and stabilized video output.

With a reserved GPS mount, pilots can enjoy safer flights in complex outdoor environments. The SPEEDX2 1104 7500KV motors, paired with newly designed high-efficiency 2219 props, deliver a strong punch while maintaining an excellent balance of power and endurance.

The entire build is compact, reinforced with a thickened canopy and prop guards for crash resistance, making it beginner-friendly and safe to fly both indoors and outdoors. Truly a performance beast among micro cinewhoops!

Feature

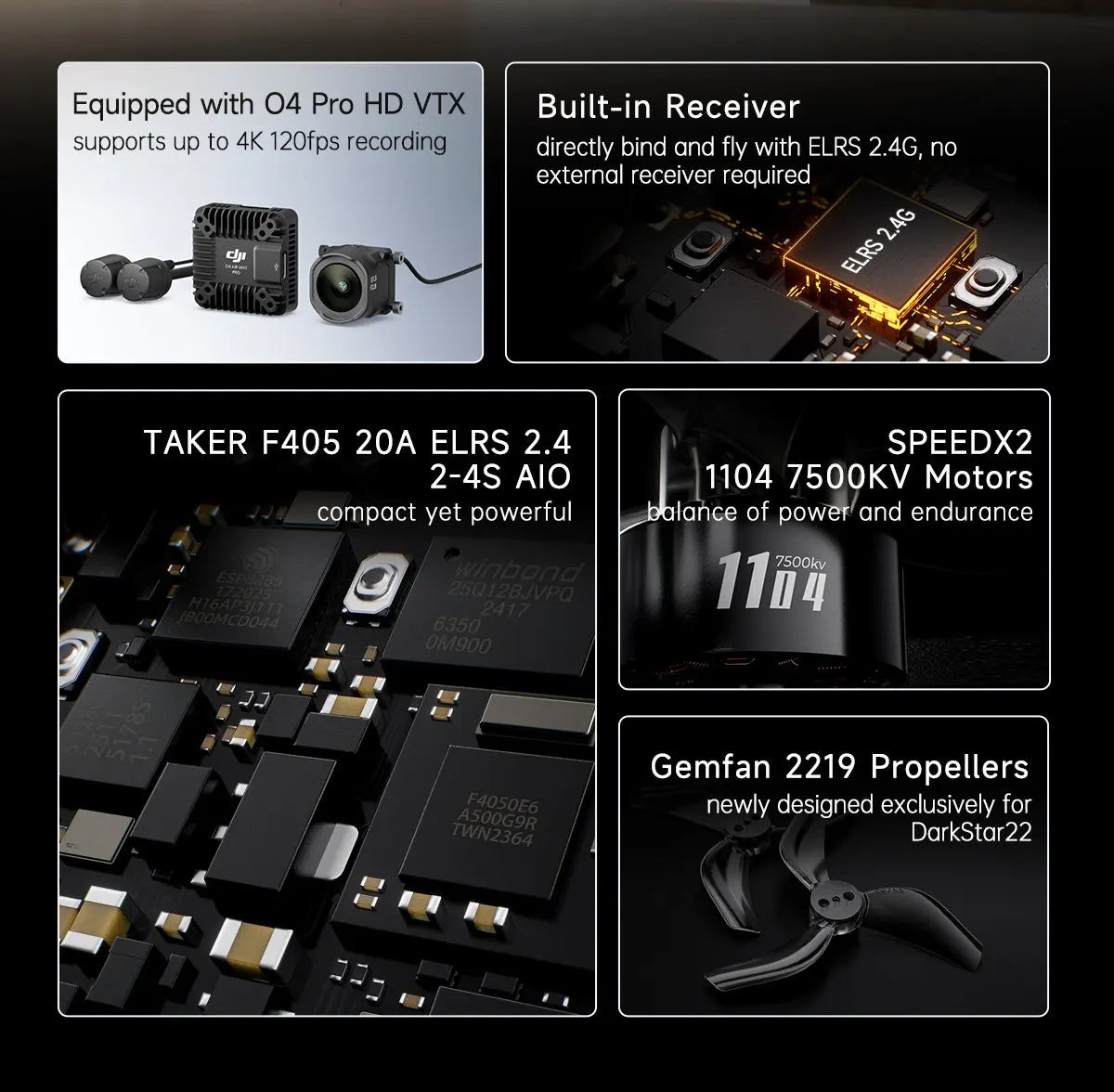

  1. Mini-sized drone with D-J-I O4 Pro HD system, supporting up to 4K 120fps recording.

  2. Powered by the latest TAKER F405 20A ELRS2.4 2-4S AIO with integrated ELRS 2.4G receiver.

  3. Camera protection canopy effectively shields the O4 Pro camera module.

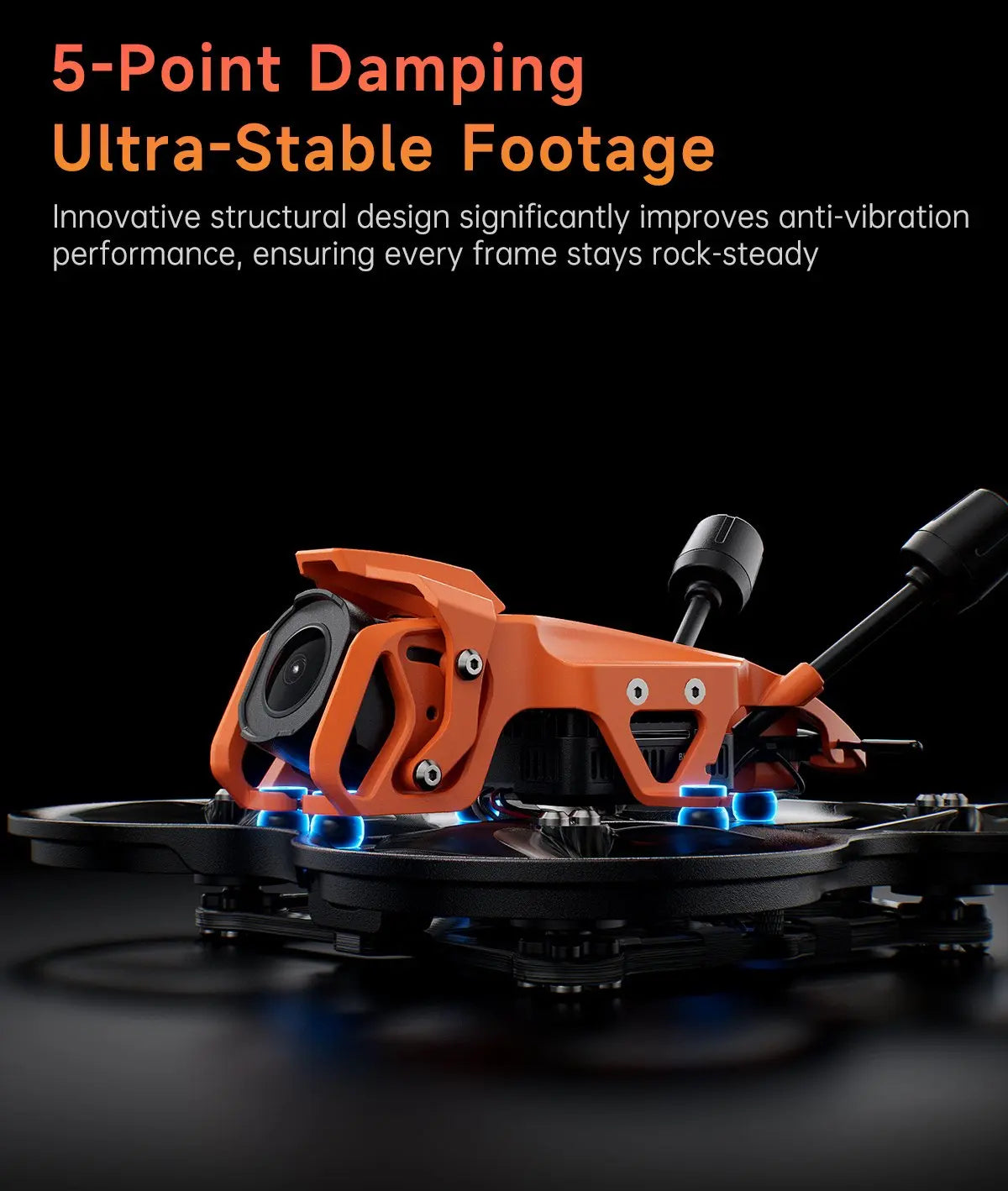

  4. All-new five-point damping design, enhancing stability for the O4 Pro camera module.

  5. Simple body structure – only 4 screws to disassemble the frame.

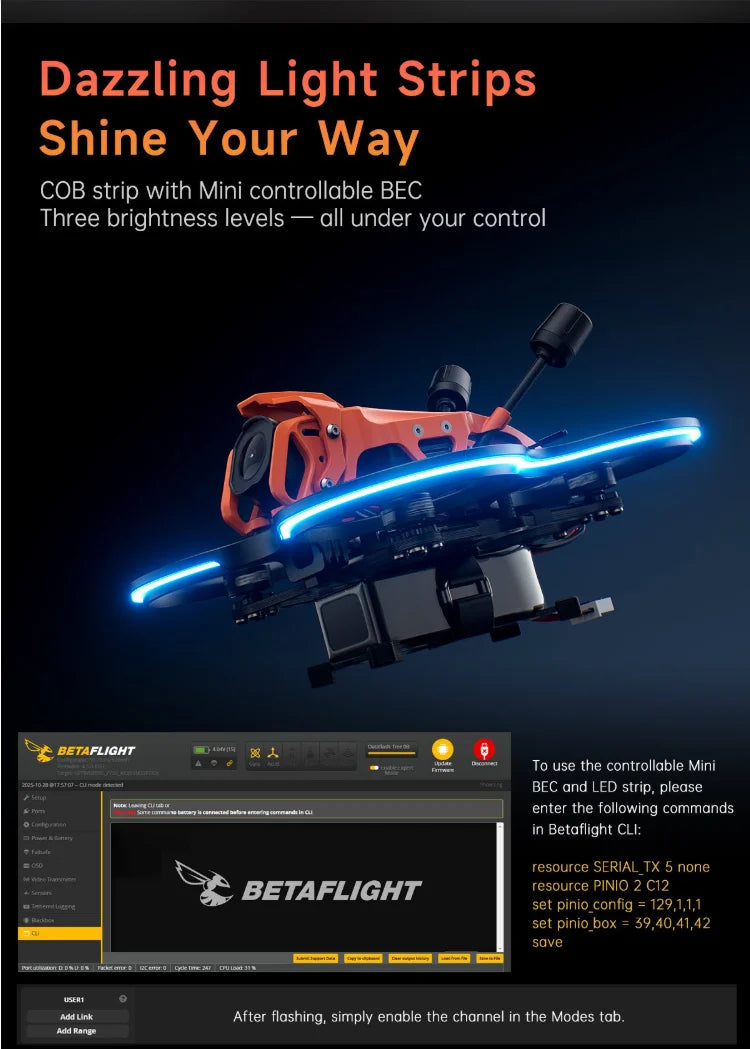

  6. LED strip powered by a mini controllable BEC – small in size, big in function.

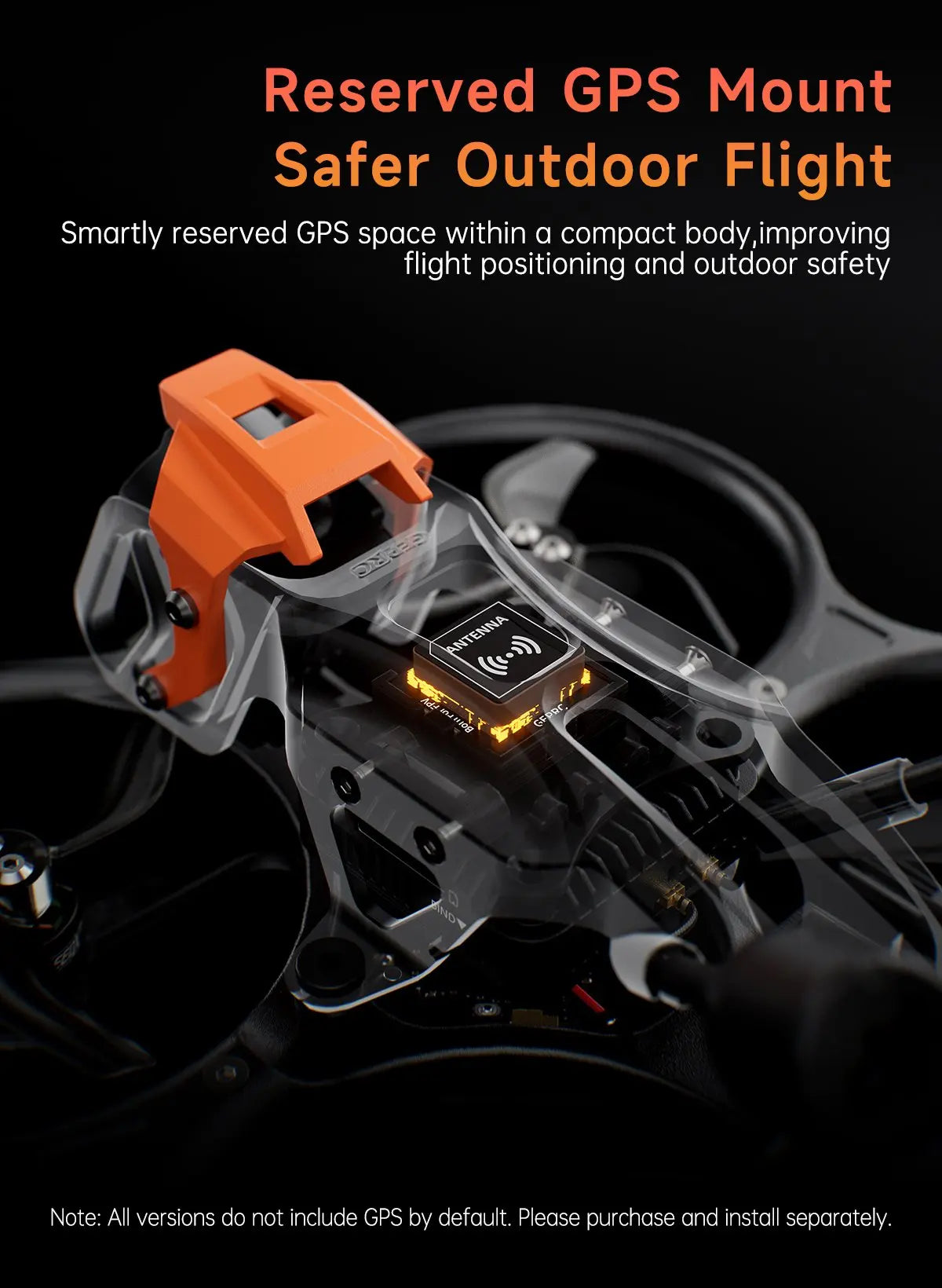

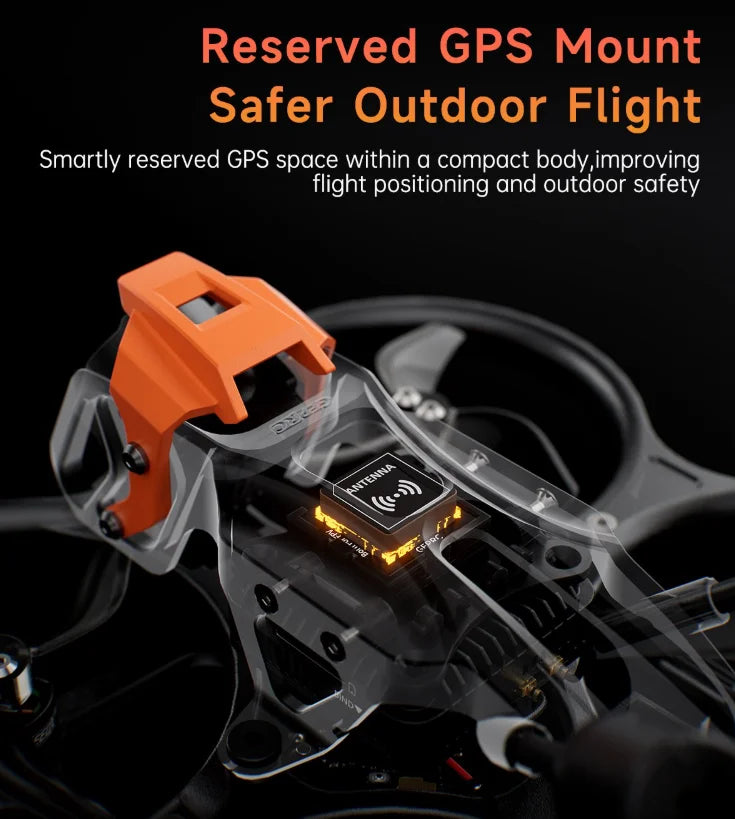

  7. O4 Pro mounting module includes reserved GPS slot, supporting most mainstream Mini GPS modules.

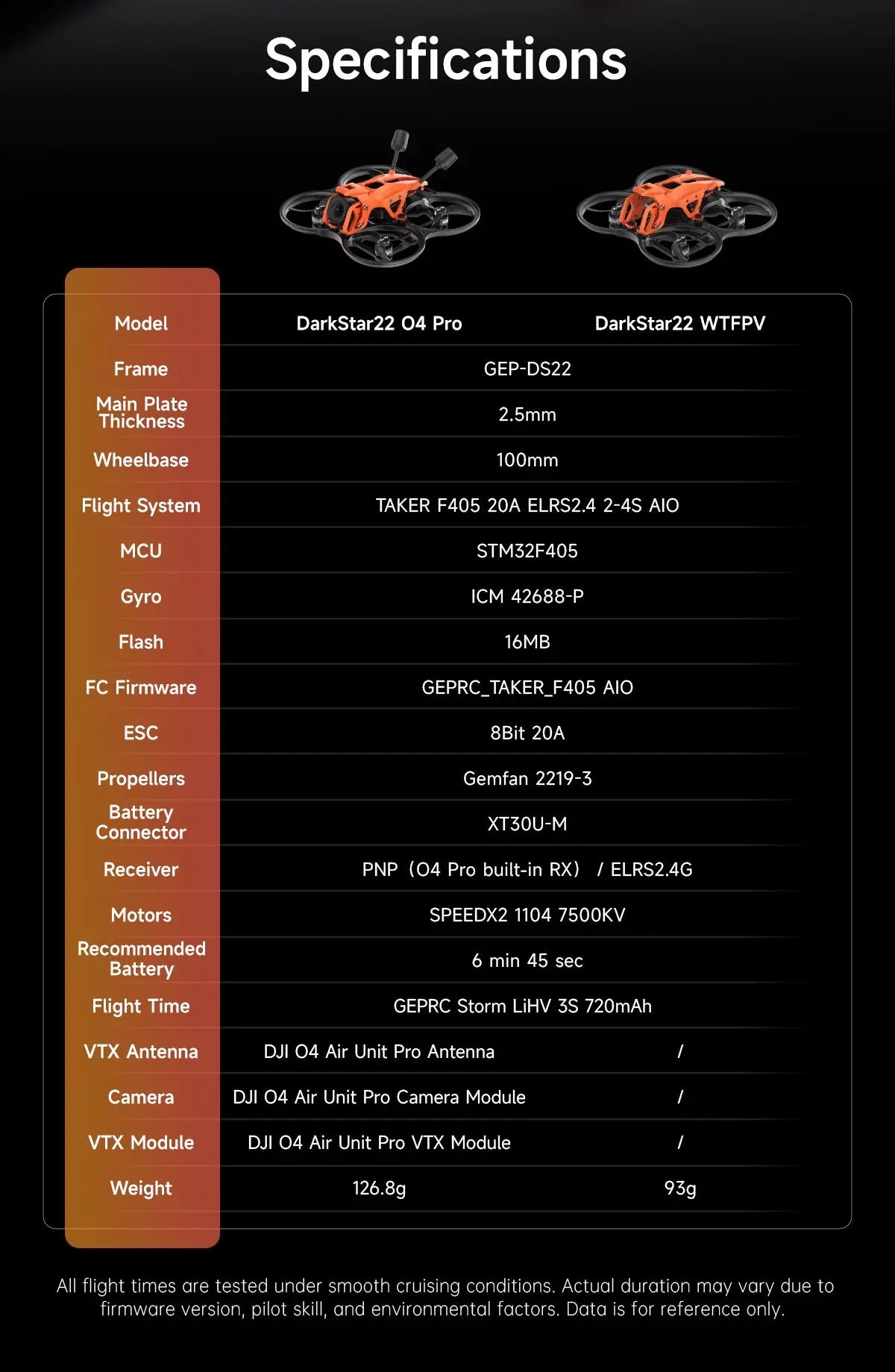

1.GEPRC DarkStar22 WTFPV CineWhoop Quadcopter Specifications

  • Model: DarkStar22 WTFPV

  • Frame: GEP-DS22

  • Main Carbon Plate Thickness: 2.5mm

  • Wheelbase: 100mm

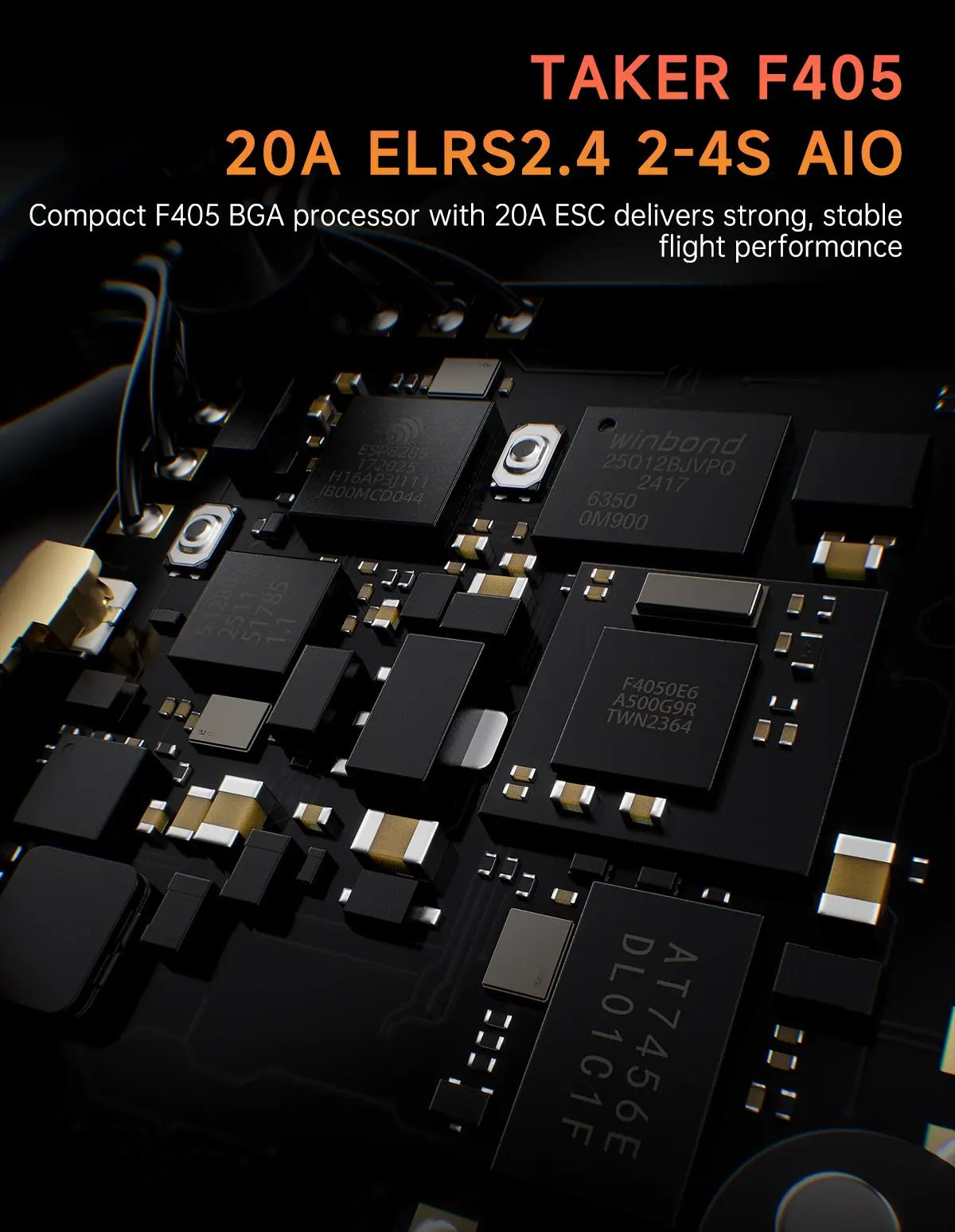

  • FC System: TAKER F405 20A ELRS2.4 2-4S AIO

  • MCU: STM32F405

  • Gyro: ICM42688-P

  • FC Firmware: GEPRC_TAKER_F405 AIO

  • Flash: 16MB

  • ESC: 8Bit 20A

  • Motor: SPEEDX2 1104 7500KV

  • Propellers: HQProp 2219-3

  • Power Connector: XT30U-M

  • VTX: None

  • Camera: None

  • Antenna: None

  • Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G

  • Weight (ELRS 2.4G version): 98.0g

  • Recommended Battery:GEPRC Storm LiHV 3S 720mAh

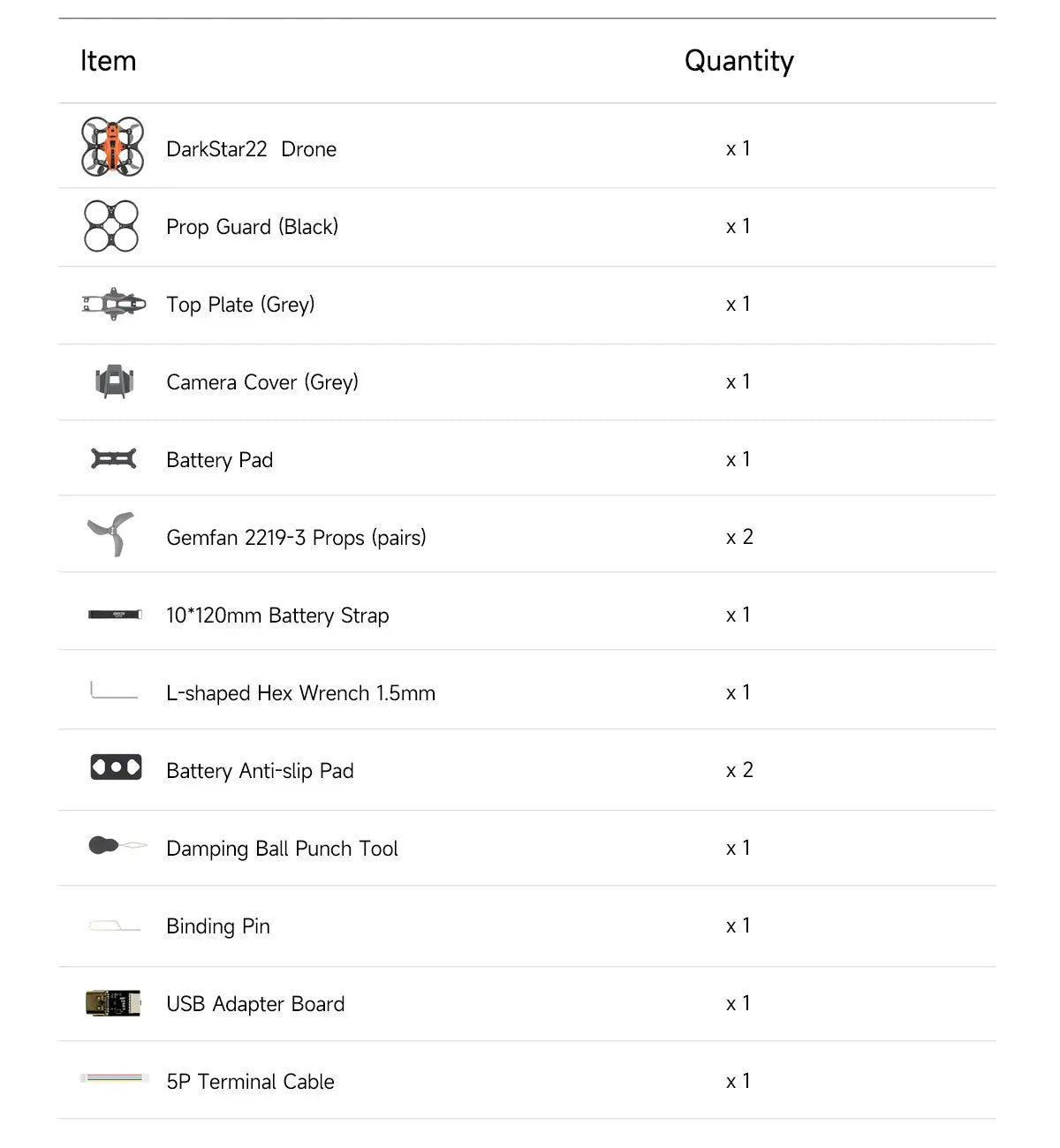

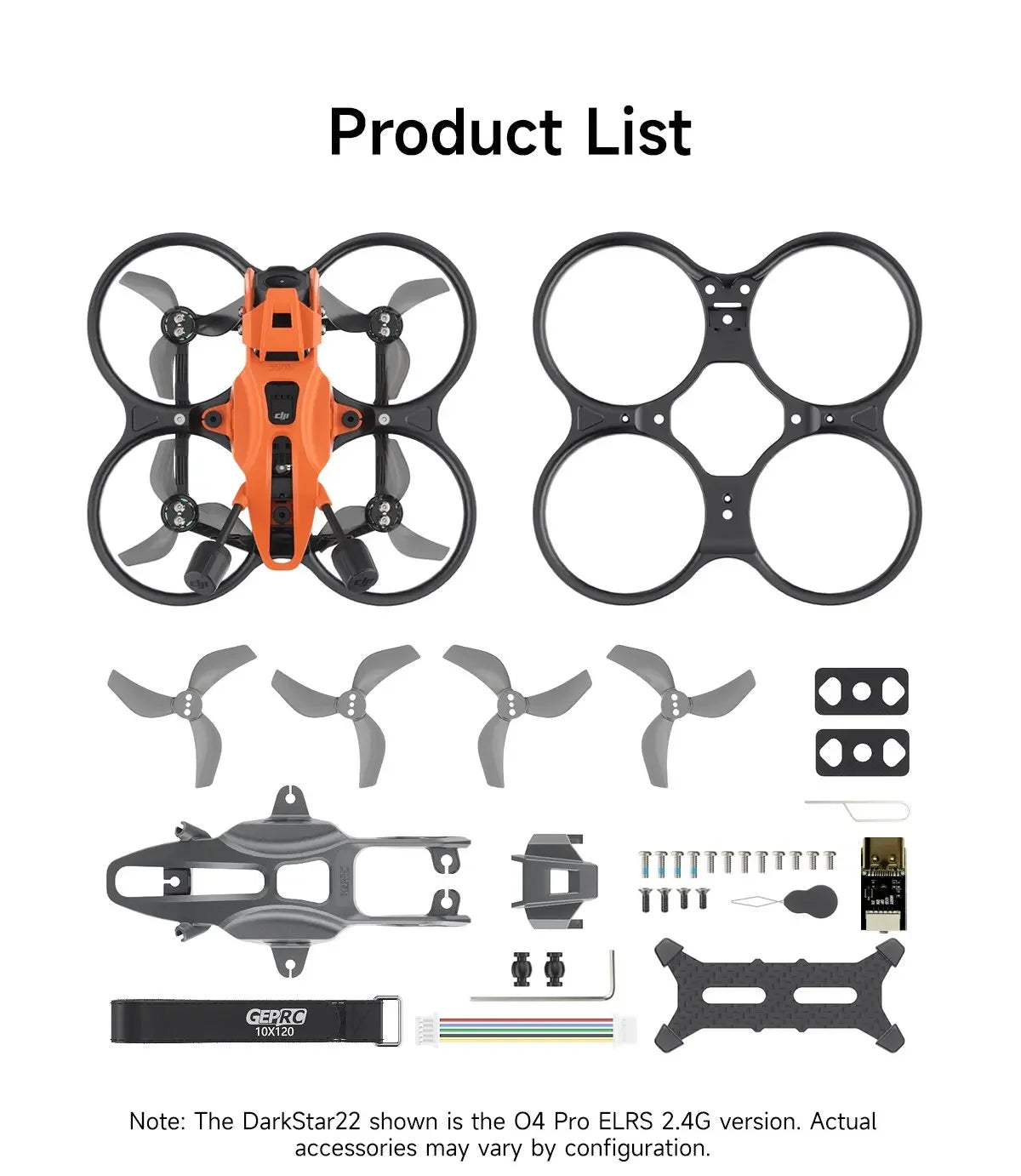

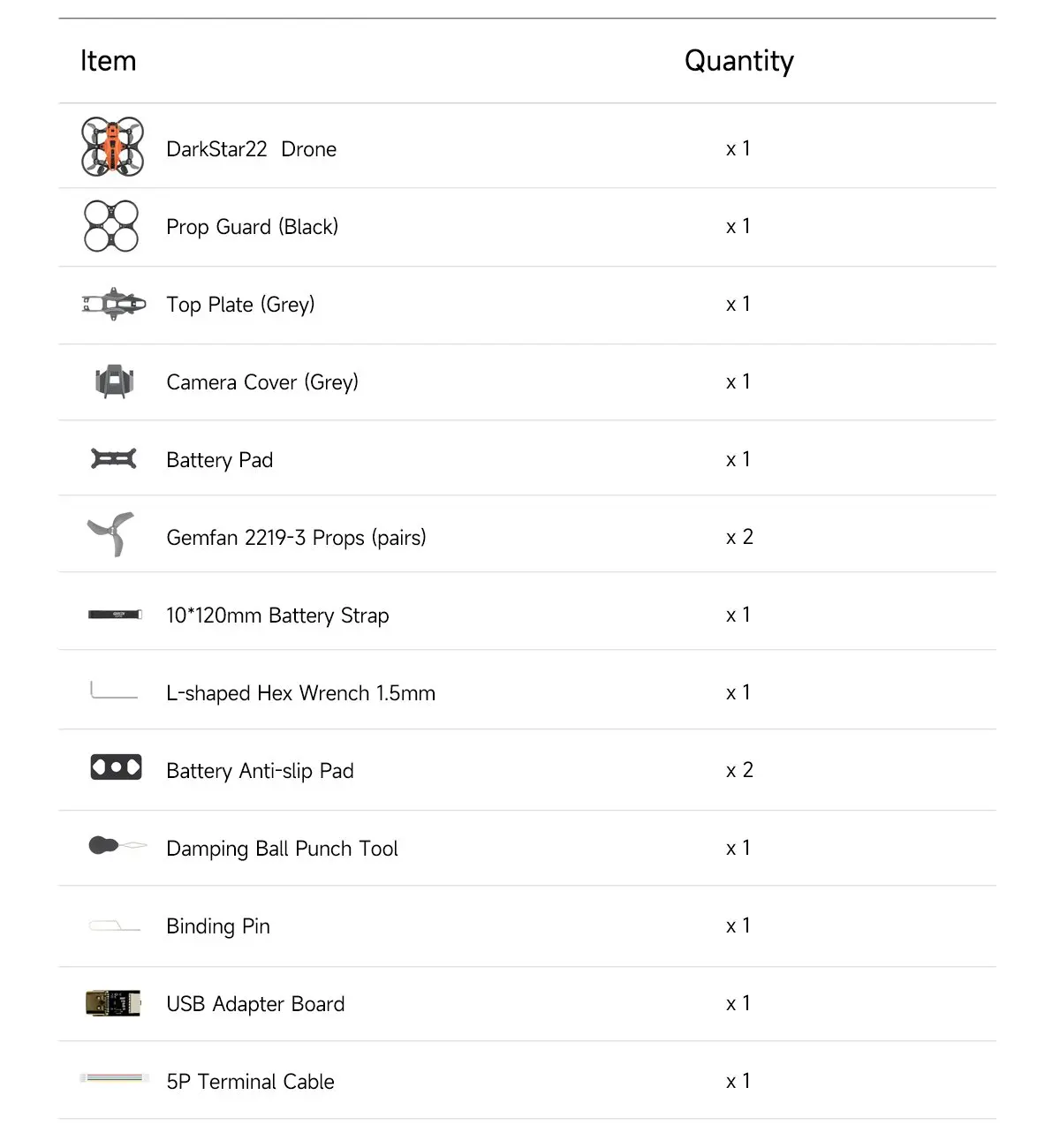

Includes

1 × DarkStar22 Drone

1 × Prop Guard

1 × Top Plate

1 × Camera Cover

1 × Battery Pad

2 × Propellers (pairs)

1 × 10*120mm Battery Strap

1 × L-shaped Hex Wrench 1.5mm

1 × Battery Anti-slip Pad

1 × Damping Ball Punch Tool

1 × Binding Pin

1 × USB Adapter Board

1 × 5P Terminal Cable

Spare Screw Pack Includes:

2 × Damping Balls

4 × M2*4 Round-head Screws

4 × M2*7 Round-head Screws

4 × M2*6 Countersunk Screws

4 × M2*5 Countersunk Screws

4 × M2*6 Round-head Screws

4 × M2*7 Countersunk Self-Tapping Screw

2.GEPRC DarkStar22 O4 Pro CineWhoop Quadcopter Specifications

  • Model: DarkStar22 O4 Pro

  • Frame: GEP-DS22

  • Main Carbon Plate Thickness: 2.5mm

  • Wheelbase: 100mm

  • FC System: TAKER F405 20A ELRS2.4 2-4S AIO

  • MCU: STM32F405

  • Gyro: ICM42688-P

  • FC Firmware: GEPRC_TAKER_F405 AIO

  • Flash: 16MB

  • ESC: 8Bit 20A

  • Motor: SPEEDX2 1104 7500KV

  • Propellers: HQProp 2219-3

  • Power Connector: XT30U-M

  • VTX: D-J-I O4 Air Unit Pro

  • Camera: D-J-I O4 Air Unit Pro camera module

  • Antenna: D-J-I O4 Air Unit Pro antenna

  • Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G

  • Weight (ELRS 2.4G version): 126.8g

  • Recommended Battery:GEPRC Storm LiHV 3S 720mAh

  • Flight Time: 6min45s (tested under smooth cruising; actual flight time depends on flight style)

Includes

1 × DarkStar22 Drone

1 × Prop Guard

1 × Top Plate

1 × Camera Cover

1 × Battery Pad

2 × Propellers (pairs)

1 × 10*120mm Battery Strap

1 × L-shaped Hex Wrench 1.5mm

1 × Battery Anti-slip Pad

1 × Damping Ball Punch Tool

1 × Binding Pin

1 × USB Adapter Board

1 × 5P Terminal Cable

Spare Screw Pack Includes:

2 × Damping Balls

4 × M2*4 Round-head Screws

4 × M2*7 Round-head Screws

4 × M2*6 Countersunk Screws

4 × M2*5 Countersunk Screws

4 × M2*6 Round-head Screws

4 × M2*7 Countersunk Self-Tapping Screw
